BY SPECIAL ORDER ONLY

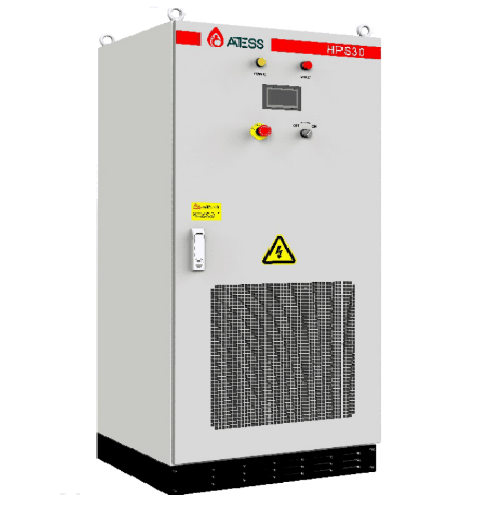

33KVA/30KW /360V – 600V ATESS 3PHASE INDUSTRIAL SMART HYBRID INVERTER

Name: 33KVA/30KW /360V – 600V ATESS 3PHASE INDUSTRIAL SMART HYBRID INVERTER - PSC SOLAR UK
Price: 13058350 NGN
Availability: InStock

₦13,058,350

Product code: HPS30PSC

Weight: 355 kg

Dimensions: W700.00mm x H1660.00mm x D600.00mm

33KVA/30KW /360V – 600V ATESS 3PHASE INDUSTRIAL SMART HYBRID INVERTER (With AI )

*Can Parallel UP TO 4 UNITS

Atess Hybrid Inverter HPS 30kw 50kw 100kw 120kw 150kw 3 Phase 380V Solar Panel System Inverter for Industrial Use

Model	HPS30	HPS50	HPS100	HPS120	HPS150
AC (Grid-connected)
Apparent power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated power	30KW	50KW	100KW	120KW	150KW
Rated voltage	400V
Rated current	43A	72A	144A	173A	217A
Voltage range	360V-440V
Rated frequency	50/60Hz
Frequency range	45~55/55~65Hz
THDI	<3%
PF	0.8lagging~0.8leading
AC connection	3/N/PE
AC input	60KVA	100KVA	200KVA	240KVA	240KVA
AC(Off-grid)
Apparent power	33KVA	55KVA	110KVA	132KVA	165KVA
Rated power	30KW	50KW	100KW	120KW	150KW
Rated voltage	400V
Rated current	43A	72A	144A	173A	217A
THDU	≤2%linear
Rated frequency	50/60Hz
Overload capability	110%-10 mins 120%-1 min
DC (Battery and PV)
Max. PV open-circuit voltage	1000V DC
Max. PV power	45KWP	75KWP	150KWP	180KWP	225KWP
PV MPPT voltage range	480V-800V DC
Battery voltage range at Max. charge power	450V-600V	500V-600V	500V-600V	517V-600V	500V-600V
Battery voltage range	352-600V
Max. charge power	45KW	75KW	150KW	180KW	225KW
Max. discharge power	33KW	55KW	110KW	132KW	165KW
Max. charge current	100A	150A	300A	350A	450A
Max. discharge current	93A	156A	313A	374A	467A
General Information
Protection degree	IP20
Noise emission	<65dB(A)@1m
Operating temperature	-25 °C~+55 °C
Cooling	Forced-air
Relative humidity	0-95% non-condensing
Maximum altitude	6000m (derate over 3000m)
Dimension (W/H/D)	700/1660/600mm	950/1860/750mm	1200/1900/800mm	1200/1900/800mm	1200/1900/800mm
Weight	355kg	610kg	948kg	1025kg	1230kg
Build-in transformer	Yes
Transfer between on/off grid	Automatic≤10ms
Standby consumption	<30W
Communication
Display	Touch screen
Communication	RS485/CAN

Weight	355 kg
Dimensions	700 × 1660 × 600 mm

33KVA/30KW /360V – 600V ATESS 3PHASE INDUSTRIAL SMART HYBRID INVERTER (With AI) TECHNICAL SPECIFICATION

33KVA/30KW /360V – 600V ATESS 3PHASE INDUSTRIAL SMART HYBRID INVERTER (With AI) BROCHURE
