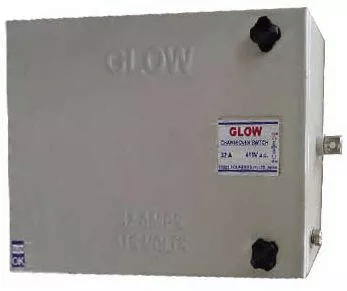

63A GLOW CHANGE OVER SWITCH
- Suitable for individual mounting, inner mounting holes and mounting brackets provided in enclosures.
- Sheet enclosure duly good phosphatized and powder coated painted for longer life.
- Provision for door interlocking
- Termination suitable for Aluminum / Copper cables, adequate knockouts provided in the enclosure for cable entry.
Contacts are made of electrolytic copper, silver plated for long contact life, increased current carrying capacity and to ensure temperature rise within permissible limits.
Operating Handle and Interlocking
The operating handle is made of steel and is provided on the right hand side of the switch enclosure. Door interlock ensures the door cannot be opened when the switch is in ON position thereby providing safety.
Terminal blocks are provided for cable termination. These are made of DMC/Porcelain which has excellent mechanical, thermal and dielectric properties.
The enclosure is made of steel suitable for individual mounting. They are provided with adequate knockout for cable entry and inner mounting holes for switch ratings up to 320A and mounting brackets for switch rating of 400A and above.
